Descripción

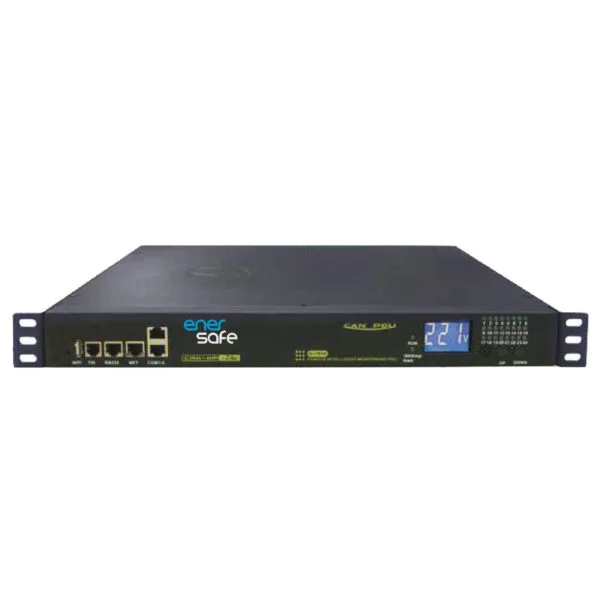

Enersafe PDU PRO Horizontal 32A Monitoreable/Administrable by Legrand
Entrada
Input |
|
Nominal Voltage |
220V |
Frequency |
50/60Hz |
Phase |
Single phase |
Plug Type |
IEC60309(32A 220VAC 2P+E)Legrand |
Power Cord Spec |
3 x 6mm² x 3 meters |
Max Input Current |
32A |
Rated Input Current |
32A |
Wiring Style |
L-N wiring |
Power Capacity |
8000W |
Salida
Nominal Voltage |
220V |
Max Output Current |
32A |
Output Connections |
8 x IEC 320 C13 |
Outlet Locking |
Yes |
Protecciones
Circuit Overload Protection |
32A circuit breaker; single pole |
Surge Suppression |
None |
Medición y Conmutación
Input/Phase Metering |
Yes |
Outlet Metering |
Yes |
Breaker Status Monitoring |
No |
Metering Accuracy |
+/- 1% |
Outlet Switching |
Yes |
Environmental Monitoring |
Temperature, Humidity, (Door contact, Water leakage, Smoke status customizable with external sensor box) |
Monitoring Parameters |
Voltage (V), Current (A), Active Power (kW), Apparent Power (kVA), Energy (kWh), Power Factor |
Comunicación
Access |
SNMP (V1,V2c,V3), HTTP/HTTPS, Telnet, Modbus-RTU |
Authentication |
N/A |
Alerts |
Voltage, current, (temperature, humidity, door status, water leaking, smoke) optional |
Service |
TFTP, SMTP |
Daisy-chain |
1 master 3 slaves |
Dimensiones y Peso
Product Dimensions |
448*220*40mm |
